Modernity and Trends of Development in Automotive LED Lighting and Sensing Systems

1. Introduction

Modern automotive development is inextricably linked with advancements in lighting and electronic systems. This paper investigates the pivotal role of Light-Emitting Diodes (LEDs) in transforming vehicle lighting, moving beyond mere illumination to becoming a cornerstone for safety, efficiency, and next-generation sensing technologies. The rapid evolution towards autonomous vehicles amplifies the need for reliable, real-time data acquisition systems, where traditional RF and laser-based sensors face limitations. The introduction of Visible Light Detection and Ranging (ViLDAR) technology, leveraging the vehicle's own LED headlights, presents a novel solution to these challenges, marking a significant trend in automotive engineering.

2. Advantages and Analysis of LED Technology

LEDs have rapidly gained dominance in automotive lighting due to their superior characteristics compared to traditional halogen or xenon lights.

2.1 Key Performance Parameters

The performance of a light source is quantified by its voltage, luminous flux (measured in lumens, lm), and luminous efficacy. Luminous efficacy, defined as the luminous flux per unit of electrical power input (lumens per watt, lm/W), is a critical metric for efficiency and economy. Modern automotive LEDs significantly outperform incandescent bulbs in this regard.

2.2 Application Spectrum in Vehicles

LED adoption has progressed from interior and signal lighting (instrument panels, tail lights, DRLs) to primary forward illumination. Since around 2007, white high-power LEDs have been successfully deployed for dipped (low) and main (high) beam headlights, offering better road illumination and longer lifespan.

Key Performance Comparison

Luminous Efficacy: LEDs: 80-150 lm/W | Halogen: ~15 lm/W

Lifespan: LEDs: >30,000 hours | Halogen: ~1,000 hours

3. System Complexity and Electrical Challenges

The increasing sophistication of vehicle electrical equipment, while boosting efficiency and storage capacity, introduces new challenges. A notable finding is that over 30% of system "reluctances" (a term implying resistance or inefficiency within the electrical system) are attributed to the electrical equipment itself. This highlights a critical area for optimization as more power-intensive LED systems and sensors are integrated.

4. ViLDAR: Visible Light Sensing for Speed Detection

The paper introduces ViLDAR as an innovative sensing technology. It operates by detecting and analyzing the visible light patterns emitted by a vehicle's LED headlights. By perceiving changes in light intensity, it can determine the vehicle's speed. This method is proposed as superior to RF or laser systems in scenarios with rapid changes in the angle of incidence or where RF interference is problematic, offering a complementary data stream for autonomous driving systems.

5. Core Insight & Analyst's Perspective

Core Insight: This paper isn't just about brighter headlights; it's a blueprint for the vehicle's nervous system. The core thesis is that the LED is transitioning from a passive component to an active sensing node. The real value proposition lies in the dual-use of photons: for human vision and for machine perception via technologies like ViLDAR. This convergence is what will drive the next efficiency leap, not just in energy use, but in data acquisition for autonomy.

Logical Flow: The argument builds logically: 1) Establish LEDs as the superior, incumbent lighting technology. 2) Acknowledge the systemic electrical burdens they introduce. 3) Propose that this very infrastructure (LED emissions) can be repurposed to solve a separate, critical problem in autonomy—reliable, non-RF sensing. It cleverly frames a challenge (system load) as an opportunity (new sensor modality).

Strengths & Flaws: The strength is its forward-looking, systems-level thinking, akin to how research in generative models like CycleGAN (Zhu et al., 2017) repurposed neural networks for unpaired image translation—finding new utility in existing architectures. A significant flaw, however, is the glossing over of monumental practical hurdles. The paper treats ViLDAR's environmental robustness as a given. What about performance in fog, heavy rain, or against highly reflective surfaces? The signal-to-noise ratio in real-world, cluttered lighting environments (streetlights, neon signs) would be a nightmare, a challenge well-documented in LiDAR and camera sensor fusion research from institutions like Carnegie Mellon's Robotics Institute. The assumption that headlight modulation can be both optimal for human vision and machine reading without conflict is highly optimistic.

Actionable Insights: For automakers and Tier-1 suppliers, the takeaway is clear: form cross-functional teams integrating lighting, ADAS (Advanced Driver-Assistance Systems), and thermal/electrical architecture engineers from the start. The lighting department can no longer work in a silo. The priority should be on developing and standardizing a secure, high-frequency modulation scheme for LED headlights that is invisible to the human eye but detectable by sensors—a form of optical Vehicle-to-Everything (V2X) communication. Pilots should focus initially on controlled environments like tunnels or warehouses where lighting conditions can be managed, rather than promising immediate full autonomy on open roads.

6. Technical Details and Mathematical Model

The fundamental principle behind ViLDAR can be modeled using the physics of light intensity and the photoelectric effect. The received light intensity $I_r$ at a sensor from a point source (headlight) follows an inverse-square law approximation:

$I_r \approx \frac{I_0}{d^2} \cdot \cos(\theta) \cdot T_{atm}$

where $I_0$ is the source intensity, $d$ is the distance to the source, $\theta$ is the angle of incidence, and $T_{atm}$ is the atmospheric transmission factor. Speed $v$ can be derived by measuring the rate of change of a specific modulated characteristic (e.g., frequency shift or phase change) in the received signal $S_r(t)$ over time:

$v \propto \frac{\Delta f}{f_0} \cdot c \quad \text{or} \quad v \propto \frac{d(\phi)}{dt}$

where $\Delta f$ is the Doppler shift, $f_0$ is the base frequency, $c$ is the speed of light, and $\phi$ is the signal phase.

7. Experimental Results & Chart Description

The study references analysis from auto technical expertise in Moscow and the Moscow Region. While specific numerical results are not detailed in the provided excerpt, the paper implies validation of LED performance metrics and the functional principle of ViLDAR. A conceptual chart for such research would typically plot:

Chart 1: Luminous Efficacy vs. Year for Different Light Sources. This would show a steep, rising curve for LED technology surpassing halogen and HID (Xenon) over the past two decades, based on data from sources like the U.S. Department of Energy's Solid-State Lighting program.
Chart 2: ViLDAR Estimated Speed vs. Ground Truth Speed (from GPS/Radar). This scatter plot would demonstrate the correlation between ViLDAR's speed calculation and a reference measurement, with an R² value indicating accuracy. Error bars would likely increase with distance and adverse weather conditions.

8. Analysis Framework: A Non-Code Case Study

Case: Evaluating a New LED Headlight System for ViLDAR Readiness.

Define Key Performance Indicators (KPIs): Luminous efficacy (target: >120 lm/W), Modulation bandwidth (target: >10 MHz for high-data-rate signaling), Beam pattern consistency (for stable signal source).
Establish Test Matrix: Test under standard conditions (dark room, 25°C), and stress conditions (temperature cycles from -40°C to 105°C, humidity, vibration per automotive standards).
Data Acquisition & Correlation: Measure photometric output and modulation fidelity simultaneously. Corrogate light output decay with signal-to-noise ratio (SNR) degradation in the ViLDAR receiver.
Decision Gate: Does the system maintain all KPIs within spec across the stress test cycle? If yes, it's "ViLDAR-ready"; if not, identify the limiting factor (e.g., thermal management, driver circuit response).

9. Future Applications and Development Directions

Li-Fi for V2X: LED headlights and taillights can form a high-speed, short-range vehicular communication network (Li-Fi), transmitting traffic, safety, and infotainment data, as explored by research consortia like the Visible Light Communication Consortium (VLCC).
Adaptive Road Painting: High-resolution LED matrix headlights could project adaptive beam patterns that "paint" hazards on the road directly in the driver's field of view or create safe corridors for pedestrians at night.
Biometric and Occupant Monitoring: Subtle, modulated interior LED lighting could be used with sensors to monitor driver alertness or passenger vital signs without dedicated cameras, addressing privacy concerns.
Integration with Digital Twins: The performance and health data of LED-sensor systems will feed into the vehicle's digital twin, enabling predictive maintenance and performance optimization via over-the-air updates.

10. References

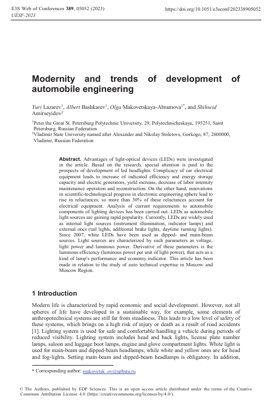

Lazarev, Y., Bashkarev, A., Makovetskaya-Abramova, O., & Amirseyidov, S. (2023). Modernity and trends of development of automobile engineering. E3S Web of Conferences, 389, 05052.
Zhu, J., Park, T., Isola, P., & Efros, A. A. (2017). Unpaired Image-to-Image Translation using Cycle-Consistent Adversarial Networks. Proceedings of the IEEE International Conference on Computer Vision (ICCV).
U.S. Department of Energy. (2023). Solid-State Lighting R&D Plan. Retrieved from energy.gov.
Carnegie Mellon University Robotics Institute. (2022). Perception for Autonomous Driving: Challenges and Directions.
Visible Light Communication Consortium (VLCC). (2021). Standardization Activities for Visible Light Communication Systems.
International Organization of Motor Vehicle Manufacturers (OICA). (2022). Global Automotive Lighting Regulations and Trends Report.
