Directional Emission of White Light via Multi-Layer Thin Film Optimization

1. Introduction

Light-emitting diodes (LEDs) have become the dominant light source across applications, from consumer electronics to automotive lighting. A key challenge in high-performance lighting, such as streetlights or automotive headlights, is not just achieving a white light spectrum perceptible to the human eye, but also controlling its angular distribution. Maximizing the radiant flux emitted within a narrow forward cone (e.g., ±α degrees) is crucial for efficiency and application-specific performance. This work addresses this challenge by employing a specifically designed Multi-Layer Thin Film (MLTF) deposited on top of a standard white LED package. The core innovation lies in using a physics-guided Bayesian optimization framework to design this MLTF, which manipulates light rays through angle- and wavelength-selective filtering—a process metaphorically described as "playing ping pong with light"—to enhance forward-direction emission.

2. Methodology & System Design

2.1 LED Package Structure & White Light Generation

A standard white LED package is a horizontal stack comprising: 1) a blue-emitting semiconductor chip, 2) a phosphor-based conversion system containing green and red conversion materials (with weight percentages $w = (w_1, w_2)$), and 3) an optional MLTF. The blue light from the chip is partially converted to green and red light by the phosphors, mixing to produce white light. The color of the resulting spectrum is defined by its color point $c_\alpha(w)$ in the CIE color space, while its intensity in the forward direction is measured as the radiant flux $P_\alpha(w)$ within a ±α cone.

2.2 Multi-Layer Thin Film (MLTF) Concept

The MLTF is an optical interference filter deposited on the LED's outer surface. Its design parameters (e.g., layer thicknesses and refractive indices) are optimized to preferentially transmit light within the desired forward cone and target white color point, while reflecting off-angle or off-color light back into the package for potential "recycling."

2.3 Physics-Guided Objective Function

The design problem is framed as a multi-objective optimization: maximize forward flux $P_\alpha$ while maintaining the color point $c_\alpha$ close to a target $C$. This is reformulated into a single, hierarchical objective function $F$ that encodes the engineering priorities:

$F(\text{MLTF design}) = \begin{cases} P_\alpha & \text{if } \Delta c < \epsilon \\ -\Delta c & \text{otherwise} \end{cases}$

where $\Delta c = ||c_\alpha - C||$ is the color deviation and $\epsilon$ is a tolerance. This function prioritizes color accuracy over flux maximization.

3. Optimization Framework

3.1 Bayesian Optimization for MLTF Design

Given that evaluating an MLTF design via physical fabrication is expensive, and via ray tracing simulation is noisy and computationally intensive, the authors employ Bayesian Optimization (BO). BO is a sample-efficient global optimization strategy ideal for expensive black-box functions. It builds a probabilistic surrogate model (e.g., a Gaussian Process) of the objective function $F$ and uses an acquisition function (like Expected Improvement) to intelligently select the next design point to evaluate, balancing exploration and exploitation.

3.2 Ray Tracing as a Noisy Simulator

The objective function $F$ is evaluated through Monte Carlo ray tracing simulations. Rays are sampled from the known blue chip spectrum and traced through the optical model of the LED package (chip, phosphors, MLTF). Interactions like absorption, conversion, and reflection are modeled using geometrical optics. The simulation is non-deterministic (noisy) due to the random sampling of rays, making BO, which can handle noise, a suitable choice.

Key Performance Target

Forward Flux Increase

MLTF aims to maximize radiant flux within a specified forward cone (e.g., ±15°).

Core Constraint

Color Point Accuracy

Color deviation $\Delta c$ must remain below tolerance $\epsilon$ to maintain perceived white light quality.

Optimization Method

Bayesian Optimization

Used to efficiently navigate high-dimensional MLTF design space with noisy ray tracing evaluations.

4. Results & Mechanism Analysis

4.1 Enhanced Directional Emission Performance

The optimized MLTF designs successfully increased the radiant flux $P_\alpha$ emitted in the forward direction compared to the reference LED without an MLTF, while maintaining the color point $c_\alpha$ within the acceptable tolerance $\epsilon$ of the target white point $C$. This confirms the effectiveness of the BO framework in solving the practical design problem.

4.2 The "Ping Pong" Optical Filtering Mechanism

Analysis of the optimized MLTFs revealed the physical mechanism behind the performance gain: angle- and wavelength-selective filtering. The MLTF acts as an intelligent mirror. Light rays exiting at desirable (small) angles and with wavelengths contributing to the target white point are transmitted. Rays at larger angles or with undesirable spectral components are reflected back into the LED package. These reflected rays have a chance to be scattered, potentially have their wavelength converted by the phosphors, and be re-emitted, possibly now at a favorable angle. This iterative process of selective transmission and reflection—akin to a ping-pong game—increases the probability of light eventually exiting in the forward direction with the correct color.

5. Technical Details & Mathematical Formulation

The core metrics are derived from the angularly resolved spectral radiant intensity $I(\lambda, \theta, \phi)$:

Forward Radiant Flux: $P_\alpha = \int_{\lambda} \int_{0}^{2\pi} \int_{0}^{\alpha} I(\lambda, \theta, \phi) \sin\theta \, d\theta \, d\phi \, d\lambda$
Color Point: $c_\alpha = (X, Y, Z) / (X+Y+Z)$, where $X, Y, Z = \int_{\lambda} I_\alpha(\lambda) \bar{x}(\lambda), \bar{y}(\lambda), \bar{z}(\lambda) \, d\lambda$, and $\bar{x}, \bar{y}, \bar{z}$ are the CIE color matching functions. $I_\alpha(\lambda)$ is the spectrum integrated over the forward cone.

The ray tracing simulation models light-matter interaction via Snell's Law, Fresnel equations, and the probability of photon conversion within the phosphor layer based on its absorption and emission spectra.

6. Analysis Framework: A Non-Code Case Study

Scenario: Optimizing an MLTF for a streetlight LED requiring high forward throw (±10° cone) and a cool white color point (CCT ~5000K).

Framework Application:

Problem Definition: Set objective $F$ with target color $C_{5000K}$ and cone angle $\alpha=10^\circ$.
Design Space Parameterization: Define MLTF variables: number of layers (e.g., 10-30), each layer's thickness (50-300 nm) and material (choice from SiO2, TiO2, etc.).
Surrogate Modeling: Initialize BO with a few random MLTF designs evaluated via ray tracing (e.g., 100k rays per simulation). A Gaussian Process models the relationship between MLTF parameters and $F$.
Iterative Optimization Loop: For 50 iterations:
- BO's acquisition function proposes the most promising new MLTF design.
- Ray tracing evaluates $F$ for this design (noisy evaluation).
- The surrogate model is updated with the new data point.
Outcome: The BO algorithm identifies an MLTF design that yields a 15-20% increase in $P_{10^\circ}$ compared to the baseline, while keeping $\Delta c$ within a 0.005 tolerance in the CIE 1931 xy color space.

7. Application Outlook & Future Directions

Advanced Automotive Lighting: Ultra-directional MLTFs could enable next-generation adaptive driving beams (ADB) with pixel-level control, improving safety by precisely shaping light patterns without glare.
Augmented/Virtual Reality (AR/VR) Displays: Directional light emission is critical for waveguide-based combiners in AR glasses. MLTFs could enhance brightness and efficiency of micro-LED light engines.
Li-Fi and Optical Communications: Increased directionality improves signal-to-noise ratio for free-space optical communication using white LEDs, potentially increasing data transmission rates.
Future Research: Integrating inverse design methods (like adjoint optimization) with the BO framework could search the MLTF design space even more efficiently. Exploring active or tunable MLTFs using electro-optic or thermo-optic materials could allow dynamic control over beam shape and color.

8. References

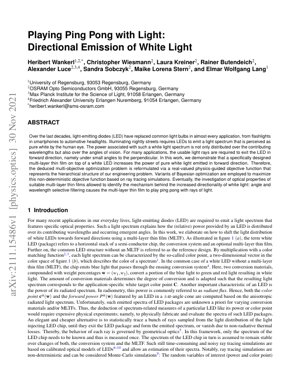

Wankerl, H., et al. "Playing Ping Pong with Light: Directional Emission of White Light." arXiv preprint arXiv:2111.15486 (2021).
Commission Internationale de l'Eclairage (CIE). CIE 015:2018 Colorimetry, 4th Edition. Vienna: CIE, 2018.
Schubert, E. F. Light-Emitting Diodes. Cambridge University Press, 2018.
Krames, M. R., et al. "Status and Future of High-Power Light-Emitting Diodes for Solid-State Lighting." Journal of Display Technology, 3(2), 160-175, 2007.
Born, M., & Wolf, E. Principles of Optics. Cambridge University Press, 2019.
Frazier, P. I. "A Tutorial on Bayesian Optimization." arXiv preprint arXiv:1807.02811 (2018).
Molesky, S., et al. "Inverse design in nanophotonics." Nature Photonics, 12(11), 659-670, 2018.
OSRAM Opto Semiconductors. "LED Technology and Applications." https://www.osram.com/os/ (Accessed 2023).

9. Expert Analysis & Critical Review

Core Insight

This paper isn't just about a better LED coating; it's a masterclass in applied computational photonics. The authors have successfully bridged a critical gap between high-fidelity physical simulation (ray tracing) and practical engineering design by leveraging Bayesian Optimization (BO). The real genius is the formulation of a hierarchical, physics-guided objective function that explicitly encodes the engineer's priority: "color accuracy is non-negotiable, then maximize flux." This moves beyond naive black-box optimization and injects domain knowledge directly into the search process, a principle echoed in advanced design methodologies like those discussed for nanophotonic inverse design by Molesky et al. (2018).

Logical Flow

The logic is robust and elegantly simple: 1) Define the real-world goal (directional white light), 2) Translate it into a computable, hierarchical metric ($F$), 3) Choose an optimizer (BO) suited to the evaluator's characteristics (expensive, noisy ray tracing), and 4) Validate the result by explaining the discovered physics (ping-pong filtering). This end-to-end pipeline from problem definition to physical explanation is a template for tackling complex opto-electronic design challenges.

Strengths & Flaws

Strengths: The integration of BO with industrial-grade ray tracing is a significant practical advance. It demonstrably reduces the "design, build, test" cycle time for optical components. The "ping pong" mechanism provides an intuitive, physically accurate narrative for a non-trivial interference phenomenon.

Flaws & Gaps: The paper, as a preprint, leaves key questions unanswered. The computational cost is hinted at but not quantified—how many core-hours were needed? How does the performance scale with MLTF complexity? Furthermore, the work assumes stable chip spectra, ignoring potential "droop" or thermal interactions between the chip and the MLTF, a non-trivial issue in high-power LEDs. There's also a missed opportunity to contrast their approach with more recent deep learning-based inverse design methods, which, while data-hungry, can offer even faster design generation once trained.

Actionable Insights

For R&D managers in lighting and display industries: Immediately pilot this BO+ray tracing framework for your own optical design problems, starting with non-critical components. The ROI in reduced prototyping costs can be substantial. For researchers: The next step is clear—hybridize this approach. Combine the sample efficiency of BO for global exploration with the speed of a pre-trained neural network surrogate for local refinement, or integrate thermal-electro-optical co-simulation to address the real-world stability gap. Finally, explore standardizing the "physics-guided objective function" format as a domain-specific language for photonic optimization, enabling more transparent and transferable design workflows across the industry.
